Absent quadrate lobe of liver: anatomical and clinical relevance

Shilpi Gupta Dixit^*, Seema Dhuria and Surajit Ghatak

Department of Anatomy, All India Institute of Medical Sciences, Jodhpur, 342005 India

*Corresponding Author:

Dr. Shilpi Gupta Dixit
503/2, AIIMS Residential Complex, All India Institute of Medical Sciences, Jodhpur, Rajasthan, India
Tel: +91 800 3996888
E-mail: shilpidr@gmail.com

Date of Received: April 25^th, 2016

Date of Accepted: January 7^th, 2017

Published Online: January 18^th, 2017

© Int J Anat Var (IJAV). 2016; 9: 53–54.

Keywords

quadrate lobe, segment, liver, hepatobiliary system

Introduction

Liver is the largest of abdominal viscera occupying most of the right hypochondrium and epigastrium and also extending considerably into the left hypochondrium till the left lateral line. It is generally wedge shaped and weighs 2% of total body weight (size and weight varying with sex, age and body size). Liver is generally considered to be anatomically divided into right and left lobes by the reflection of falciform ligament on the anterior surface, fissure for ligamentum teres inferiorly and posterior surface by the ligamentum venosum. Both caudate and quadrate lobes are considered to be part of anatomical right lobe. The quadrate lobe lies on the inferior surface of liver between the ligamentum teres and fossa for gallbladder. In gross anatomical descriptions, it is considered to be a part of right lobe although functionally it is a separate entity.

The concept that liver is a segmental organ originated first from the study of Hjortsjo, which was further consolidated by Elias and Petty by plastic casts of ductal and vascular system stated the liver can be divided into functional subsegments each with its own ductal and venous system [1,2]. Currently, functional classification of liver is the Counaud’s division into eight functional segments based on distribution of portal venous branches and locations of veins in parenchyma. Comprehensive knowledge about the differentiation of segments and their abnormalities is essential for successful modern surgeries on hepatobiliary system.

The present study is reporting one such rare variant that should be in the knowledge of clinicians’ and surgeons.

Case Report

An unusual variation of liver was observed during routine dissection of abdomen of a formalin fixed cadaver (Figure 1). Left lobe in general appeared to be small in size. Fissure for the ligamentum teres was in direct contact with the lateral edge of fossa for gallbladder (inferring that quadrate lobe was absent). Inferior border of liver measured 19 cm (between the two triangular ligaments) and the maximum transverse diameter was 14.5 cm. Dimensions of left and right lobe were 8.5x8 cm and 11x15.1 cm, respectively. Length of porta hepatis was 2.5 cm (smaller than normal; 5 cm). No other abnormality was seen in the porta hepatis, inferior vena cava, fissures for ligamentum venosum and ligamentum teres, and impressions of the viscera. There was hypertrophy of caudate lobe, its dimensions being 5.8x2.2 cm.

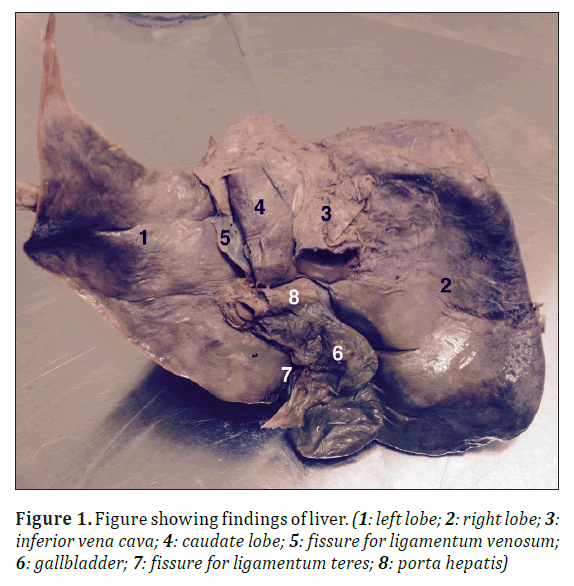

Figure 1. Figure showing findings of liver. (1: left lobe; 2: right lobe; 3: inferior vena cava; 4: caudate lobe; 5: fissure for ligamentum venosum; 6: gallbladder; 7: fissure for ligamentum teres; 8: porta hepatis)

Discussion

Congenital abnormalities of human liver are rare and correspond to developmental defects during embryogenesis [3]. Developmental anomalies of right lobe of liver were first reported by Heller in his study in 1870 [4]. Generally, it is associated with anatomical variations like hypertrophy of liver segments and variations in the position of gallbladder. Pages et al. classified these morphological anomalies as agenesis (absence of a lobe or a part of it), aplasia (one of the lobe is small and its structure is abnormal) or hypoplasia (one of the lobe is small but normal in structure) [5].

Embryologically, liver and biliary system arise from a ventral outgrowth (hepatic diverticulum) from distal part of foregut and grows into the ventral mesentery of gastrointestinal tract. Functionally, liver is essentially a segmental organ as has been seen and reported by Hjortsjo et al., Elias and Petty by studying the territorial distribution of hepatic duct, artery and portal vein [1,2]. The variations in development of organ correspond to variations in the distribution of liver territories [6].

Although congenital anomalies of liver have been reported, but complete absence of one or more lobes is rare. Observations in the present study included complete absence of quadrate lobe. Nayak et al. reported in their study that quadrate lobe and fissure for ligamentum teres were absent [7]. Quadrate lobe is considered as a separate lobe both functionally and anatomically.

A possibility of the presence of an abnormal liver has to be kept in mind while planning surgeries of abdomen. The knowledge about differentiation of segments is also essential. Inoue et al. suggested that agenesis or hypoplasia of right lobe might predispose the patient to portal hypertension and esophageal varices, especially when the left lobe is not enlarged perhaps due to reduction of intrahepatic branches of portal vein [8]. Anomalies of lobes of liver including agenesis are generally associated with anomalous positions of gallbladder, the knowledge of which is essential for planning surgeries like cholecystectomy. The entire quadrate lobe is a separate anatomical segment because of separate branches and ductuli of portal vein, hepatic artery and bile duct. Surgical knowledge of various lobar agenesis of liver is essential for planning of surgeries and appropriate identification of intraoperative surgical findings.

Conclusion

Knowledge of agenesis of lobes of liver is of immense clinical and surgical importance. Surgeons must recognize the entities like the absence of normal lobes or presence of accessory lobes of liver, which may lead to confusion during radiological and surgical diagnosis. Therefore, the findings of the present study may be of interest to surgeons and radiologists.

References

1. Hjortsjo CH. The topography of the intrahepatic duct systems. Acta Anat (Basel). 1951;11(4):599–615.
2. Elias H, Petty D. Gross anatomy of the blood vessels and ducts within the human liver. Am J Anat. 1952 Jan;90(1):59–111.
3. Boufettal R, Khaiz D, Jai SR, Chehab F, Bouzidi A. Right liver agenesis with ectopic gallbladder and bile duct calculi. Gastroenterol Clin Biol. 2008;32(4):405–407. (French)
4. Heller A. Mangelhafte Entwicklung des rechten Leberlappens. Arch Pathol Anat Physiol Klin Med. 1870;51:355–357.
5. Pages A, Marty-Double C. Les Malformations Constitutuionnelles du Foie et des Voies Biliaires Intrahepatiques. Ed Varia, Paris. 1972; 19–43.
6. Champetier J, Yver R, Létoublon C, Vigneau B. A general review of anomalies of hepatic morphology and their clinical implications. Anat Clin. 1985;7(4):285–299.
7. Nayak SB, Mishra S, George BM, Shetty SD, Kumar N, Guru A, Rao SS, Aithal A. A peculiar liver with surgically and radiologically important variations: a case report. Anat Cell Biol. 2013;46(1):82–84.
8. Inoue T, Ito Y, Matsuzaki Y, Okauchi Y, Kondo H, Horiuchi N, Nakao K, Iwata M. Hypogenesis of right hepatic lobe accompanied by portal hypertension: case report and review of 31 Japanese cases. J Gastroenterol. 1997;32(6):836–842.
