The effect of continuous positive airway pressure treatment on P-wave dispersion and intrinsicoid deflection time in severe obstructive sleep apnea syndrome
2 Department of Cardiology, Medical Park Tarsus Hospital, Tarsus, Mersin, Turkey
Received: 23-Oct-2017 Accepted Date: Nov 14, 2017; Published: 16-Nov-2017, DOI: 10.4172/2368-0512.1000096
Citation: Sabri S, Adnan KU. The effect of continuous positive airway pressure treatment on P-wave dispersion and intrinsicoid deflection time in severe obstructive sleep apnea syndrome. Curr Res Cardiol 2017;4(4):61-64.
This open-access article is distributed under the terms of the Creative Commons Attribution Non-Commercial License (CC BY-NC) (http://creativecommons.org/licenses/by-nc/4.0/), which permits reuse, distribution and reproduction of the article, provided that the original work is properly cited and the reuse is restricted to noncommercial purposes. For commercial reuse, contact [email protected]
OBJECTIVE: This study aims to evaluate the effects of continuous positive airway pressure (CPAP) treatment on intrinsicoid deflection time (R wave peak time) and P wave discrimination in severe obstructive sleep apnea syndrome (OSAS).
METHODS: Fifty-five patients with severe OSAS (apnea-hypopnea index ≥ 30) and a healthy control group were included. Baseline electrocardiography (ECG), echocardiography (ECHO), and polysomnography parameters were recorded. All patients received CPAP treatment. ECG and ECHO echocardiography tests were repeated after one-year of CPAP therapy.
RESULTS: A total of 55 OSAS patients (36 M, 19 F) with a mean age of 56.9 ± 7.6 years and 54 healthy controls (31 M, 23 F) with a mean age of 56.6 ± 5.7 years were included. There was a significant improvement in terms of intrinsicoid deflection time in lead V1 (76.2 ± 8.3 vs. 59.8 ± 7.2) and lead V6 (58.5 ± 8.0 vs. 49.8 ± 7.1), and P-wave dispersion (95.2 ± 12.8 vs. 39.8 ± 6.4) after one-year CPAP treatment (p<0.001). Cardiac volumes and diameters improved significantly.
CONCLUSION: CPAP treatment significantly decreases intrinsicoid deflection time in leads V1 and V6, and improves P-wave dispersion. The results of this study indicate that long-term CPAP treatment had a strong protective effect on right or left cardiac functions in severe OSAS patients without any cardiac and pulmonary disease.
CPAP; Intrinsicoid deflection time; OSAS; P-wave dispersion; Polysomnography
Obstructive sleep apnea syndrome (OSAS) is a common sleep disorder. It is caused by temporary collapse of the upper airway, which results in nocturnal hypoxia and sleep disturbance [1,2]. Many vascular diseases including hypertension, coronary heart disease, heart failure, cardiac arrhythmias, and stroke have been found to be associated with OSAS . Cardiovascular morbidity and mortality have been reported as high as 70% in patients with OSAS .
Many studies have shown that OSAS is associated with changes in cardiac structure such as myocardial hypertrophy or increased left ventricular mass, which can widen the QRS complex on the electrocardiogram (ECG) [5-7]. On the other hand, prolonged QRS duration is an independent predictor of mortality and cardiovascular diseases (e.g., hypertension and heart failure) in OSAS patients. It has also been shown that severe OSAS patients (AHI ≥ 30) have a four-fold higher frequency of atrial fibrillation (AF) . Arrhythmia and its improvement with continuous positive airway pressure (CPAP) therapy in OSAS patients have been reported as well . However, the relationship between OSAS and intrinsicoid deflection (ID) (i.e., R-wave peak time) is unknown.
Continuous positive airway pressure is used as first line treatment modality in patients with severe OSAS . Regular use of CPAP may lead to reduction in cardiovascular risk in patients with heart failure. A reduction of blood pressure, an increase in left ventricular ejection fraction, and a decrease in left ventricular hypertrophia, and an improvement in cardiovascular function have been demonstrated with echocardiographic (ECHO) findings .
Intrinsicoid deflection time is defined as the interval measured from the earliest ventricular activation to the peak of the R wave. This measure represents the time for excitation to spread from the endocardial to epicardial surface of the left ventricle . Prolongation of the ID time is frequently associated with diastolic dysfunction. In right ventricular hypertrophy, a prolonged ID time is frequently detected in leads V1 and V2 whereas it is not prolonged in lead V6 . Hence, we hypothesized that severe OSAS is associated with prolongation of ID time and P-wave discrimination (PWD), which might be helpful in clarifying the right ventricular hypertrophy and pulmonary hypertension in OSAS patients. Therefore, the aim of this study was to evaluate the impacts of CPAP treatment on ID time and PWD in OSAS patients.
Study design and participants
This prospective was conducted by the Departments of Cardiology and Chest Disease at the Istinye University Liv Hospital and the Medicalpark Hospital. The study protocol was approved by institutional ethics committee. All participants were informed about the study and written consent was obtained before the study. The patients who underwent polysomnography (PSG) at the sleep laboratory with a prediagnosis of OSAS were evaluated and those with severe OSAS (apnea- hypopnea index [AHI] ≥30 events/h) were included in the study. According to the results of polysomnographic study, CPAP treatment was recommended to patients with severe OSAS. All patients underwent physical examination and detailed medical history was taken. Age, gender, body mass index (BMI), resting heart rate, systolic and diastolic blood pressure, presence of hypertension and AHI scores were recorded in all participants. Each patient was assessed with PSG, ECHO, and ECG. After one year of regular CPAP treatment, ECG and ECHO measurements were repeated. Baseline and post-intervention data was compared.
Patients with known right or left bundle branch block, atrial fibrillation, heart valve disorders, advanced heart failure, permanent pacemaker, advanced lung disease, and those using on antiarrhythmic drugs were excluded.
All referred subjects with suspected OSAS were subjected to a onenight PSG at the sleep laboratory using the Nox A1 PSG System (Nox Medical, Reykjavik, Iceland). All patients were evaluated by the same physician certified in sleep medicine. Physiological variables evaluated during PSG included; electroencephalogram, electro-oculogram, electromyogram, electrocardiogram, oral and nasal air flow, respiratory effort (thoracoabdominal), body position, and blood oxygen saturation (SpO2) (mean and minimum SpO2). ECG and anterior tibial electromyography were used to monitor for cardiac arrhythmias and periodic limb movements, respectively. The test was performed according to specific criteria for the definition of sleep stages by trained technicians who were unaware of the patient characteristics.
Severity of the OSAS was defined according to Apnea–Hypopnea Index (AHI) as mild (AHI= 5 to 15 events/h), moderate (AHI= 15 to 30 events/h, and severe (AHI>30 events/h). A hypopnea event was defined as a reduction in airflow of at least 50% or a reduction in the SpO2 of at least 4% .
In patients with OSAS, echocardiograms were obtained both before and after CPAP treatment. Echocardiographic parameters were assessed with twodimensional and M-mode cardiovascular ultrasound system (GE-Vingmed Vivid 7 system; Germany). The procedure was performed in the left lateral decubitus position with noninvasive monitoring. Parasternal long-axis and short-axis views and apical views were acquired as standard transthoracic windows. The Simpson method was applied for determining the left ventricular ejection fraction by echocardiography. ECHO was performed by an experienced cardiologist who was blinded to patient data.
Heart rate, blood pressure, and 12-lead ECG (Cardiovit AT-102 Plus, Schiller, Switzerland) were recorded at rest in the supine position. ECG was performed at the morning hours (between 8:00 and 10:00 AM). ECG measurements of intrinsicoid deflection time in lead V1, in lead V6, and PWD were assessed by an experienced cardiologist who was blinded to the study. The mean of three readings was obtained for further analyses.

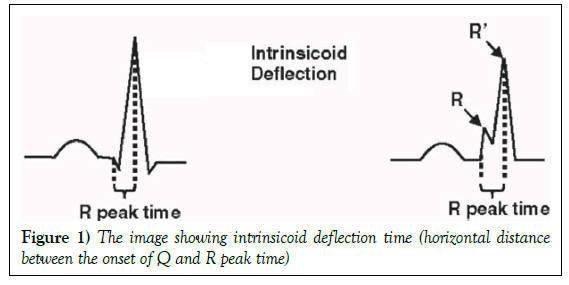

The ID on ECG was defined as the time from the onset of the earliest Q to the peak of the R wave (R wave if the Q wave was absent) (Figure 1).
On surface ECG, the P-wave duration was measured from the beginning and to the end of the P-wave. The beginning of the P-wave was defined as the starting point from the baseline for the positive waveform, and as the point of first downward departure from baseline for negative waveforms. The return to the baseline was considered to be the end of the P-wave. The difference between the maximum and minimum P-wave duration was calculated and this difference was defined as P-wave dispersion (PWD = Pmax - Pmin).
The data were analyzed with SPSS 21.0 for Windows software (SPSS Inc., Chicago, IL, USA). The continuous variables were reported as mean + standard deviation and categorical variables as count (percentage). Kolmogorov-Smirnov test was used to test the normality of distribution. The t-test was used to compare independent groups and the paired t-test was used for within group comparisons. Chi-square test was used to analyze categorical variables. A value of p<0.05 was regarded as statistically significant.
A total of 55 OSAS patients (36 M, 19 F) with a mean age of 56.9 ± 7.6 years and 54 healthy controls (31 M, 23 F) with a mean age of 56.6 ± 5.7 years were included. Baseline characteristics and echocardiographic data of the participants are summarized in Table 1.
|Parameters||Study group||Control group||p|
|Age (years)||56.9 ± 7.6||56.6 ± 5.7||0.841|
|Sex||Female||19 (34.5)||23 (42.5)||0.388|
|Male||36 (65.4)||31 (57.4)|
|Body mass index (kg/m2)||29.1 ± 3.9||27.6 ± 3.1||0.027|
|Hypertension (%)||23 (41.8)||16 (29.6)||0.184|
|Heart rate pulse (min)||67.2 ± 7.0||66.9 ± 5.9||0.85|
|Systolic blood pressure (mmHg)||131.9 ± 7.9||126.7 ± 6.8||<0.001|
|Diastolic blood pressure (mmHg)||77.5 ± 6.4||73.8 ± 6.1||0.003|
|Electrocardiography characteristics||Intrinsicoid deflection in V1 (ms)||76.2 ± 8.3||28.0 ± 4.1||<0.001|
|Intrinsicoid deflection in V6 (ms)||58.5 ± 8.0||37.8 ± 4.8||<0.001|
|P-wave dispersion (ms)||95.2 ± 12.8||39.8 ± 6.4||<0.001|
TABLE 1: Baseline characteristics of the groups
There was no statistically significant difference between the groups with respect to the age, gender, presence of hypertension, and heart rate pulse. However, a significant difference was observed between the groups regarding the BMI, ECG findings, and blood pressure parameters. OSAS patients have higher BMI levels compared with the control group (29.1 ± 3.9 vs 27.6 ± 3.1 kg/m2) (p=0.027). The ID in leads V1 (ID-V1) and V6 (ID-V6), and PDW values were significantly longer in the OSAS group than in the control group (all p< 0.001). Baseline and post- treatment echocardiography and electrocardiography findings were compared in Table 2.
|Study group (n =55)|
|Baseline||At 1st year||p-value|
|Apnea/Hypopnea Index (AHI)||50.6 ± 11.3||21.5 ± 4.6||<0.001|
|Mean O2 saturation (%)||93.0 ± 1.4||96.7 ± 1.1||<0.001|
|Heart rate pulse (min)||67.2 ± 7.0||64.4 ± 6.8||<0.001|
|Systolic blood pressure (mmHg)||131.9 ± 7.9||127.0 ± 6.8||<0.001|
|Diastolic blood pressure (mmHg)||77.5 ± 6.4||75.6 ± 5.4||<0.001|
|Ejection fraction (%)||61.4 ± 3.3||61.7 ± 3.2||0.008|
|E/A ratio||0.9 ± 0.0||0.8 ± 0.0||<0.001|
|LVEDD (mm)||52.0 ± 3.6||50.8 ± 3.5||<0.001|
|LVESD (mm)||37.8 ± 2.7||37.3 ± 2.6||<0.001|
|IVSD (mm)||1.2 ± 0.1||1.16 ± 0.0||<0.001|
|LVPW thickness (mm)||1.0 ± 0.0||0.9 ± 0.0||0.044|
|ID in V1 (ms)||76.2 ± 8.3||59.8 ± 7.2||<0.001|
|ID in V6 (ms)||58.5 ± 8.0||49.8 ± 7.1||<0.001|
|PWD (ms)||95.2 ± 12.8||77.8 ± 11.7||<0.001|
|End Diastolik Volume (2 chamber)||119.3 ± 9.5||126.3 ± 8.4||<0.001|
|End Diastolik Volume (4 chamber)||124.3 ± 8.3||129.7 ± 7.2||<0.001|
|End Sistolik Volume (2 chamber)||45.7 ± 4.8||48.1 ± 4.7||<0.001|
|End Sistolik Volume (4 chamber)||47.7 ± 4.7||49.4 ± 4.8||<0.001|
TABLE 2: Baseline and at 1-year follow-up characteristics of the study groups
A significant improvement was observed in terms of PSG, ECHO, and ECG findings (all p<0.05).
In this study, we have evaluated the impact of one-year CPAP treatment on ECG and ECHO parameters in patients with severe OSAS. According to our results, we have four main findings. First, ID time in leads V1 and V6 significantly prolonged in severe OSAS. Second, patients with severe OSAS had increased PWD. Third, ID time and PWD significantly improved with CPAP treatment. Finally, CPAP treatment improves left ventricular functions and geometries.
In OSAS, acute physiologic stress occurs during the episodes of asphyxia, including arterial oxygen desaturation, surges in sympathetic activity, and acute hypertension. These cycles may occur hundreds of times a night in a patient with moderate-to-severe OSAS [13,14]. Hence, both ventricles are exposed to hemodynamic stress. Systemic or pulmonary arterial pressures, or both, increase during sleep with sleep-related apneas. During apnea periods, the large negative intrathoracic pressures are created during inspiratory efforts, which increases transmural pressure of myocardium, thus increasing afterload. Increased venous return may also produce an increase in preload and pulmonary congestion. Moreover, hypoxemia reduces oxygen delivery to the myocardium, which may induce angina or arrhythmias [15,16]. Lastly, frequent arousals from sleep due to respiratory events leads to sympathetic activity and a subsequent increase in catecholamine levels [17,18]. Consequently, the adverse events of repetitive episodes of increased afterload on the heart during sleep may persist during the day.
CPAP treatment causes a significant reduction in nocturnal sympathetic activity and blunts blood pressure increments during sleep. Sympathetic nerve responses to CPAP treatment seem to depend on the duration of therapy . In a study by Marrone et al., high levels of catecholamines were not reduced after one night of CPAP treatment in OSAS patients . After one month of CPAP treatment, a variable effect on sympathetic activity was evident [15,21]. Up to two years of CPAP treatment, however, it was reported that a significant reduction in both plasma norepinephrine levels and catecholamine excretion were detected .
The effect of CPAP on daytime blood pressure is controversial. While some studies report a reduction in blood pressure, others do not [21-23]. A linear relationship between the severity of OSAS and hypertension was recently reported. Besides the higher AHI scores were associated with increased risk of hypertension . CPAP treatment reduces the sympathetic nervous system activation associated with apneas . Previous studies have already shown the favorable effects of CPAP treatment on blood pressure in OSAS patients [24,25]. Likewise, in the present study, compared with the baseline measurements, the CPAP treatment achieved a significantly greater decrease in diastolic and systolic blood pressure, and these reductions were observed in non-hypertensive patients. We believe that our results are noteworthy because prompt intervention with CPAP therapy in OSAS patients might be protective against hypertension. Similarly, heart rate significantly reduced after CPAP treatment. This fact could be attributed to the beneficial effects of CPAP treatment on sympathetic changes.
The ID time represents the time of spreading of excitation from the endocardial surfaces to the epicardial surface of the left ventricle . Prolongation of ID shows a delay in ventricular activation and indicates impaired myocardial function. It is frequently associated with diastolic dysfunction. In right ventricular hypertrophy, a prolonged ID time is frequently detected in leads V1 and V2 whereas it is not prolonged in lead V6. On the other hand, PWD is a predictive of AF and OSAS patients have increased risk of arrhythmia. From this point of view, we can say that OSAS patients have increased risk of cardiovascular events [5-8]. In our study, mean ID time in Lead V1 was 76.2 ± 8.3, and it was significantly improved by longterm CPAP usage (59.8 ± 7.2). Additionally, P-wave discrimination was 95.2 ± 12.8 and significantly improved (77.8 ± 11.7) with CPAP treatment. Herein, we highlight the potential role of CPAP therapy in bypassing the risk factors for cardiovascular events.
The beneficial effect of CPAP on cardiac functions such as improved myocardial oxygen delivery, decreased sympathetic activity, left ventricular transmural pressure, and afterload have been reported in many studies . Furthermore, Alchanatis et al. studied 15 OSAS patients, and determined left ventricular diastolic dysfunction and increased diastolic blood pressure, each of which improved following 3 to 4 months of nasal CPAP treatment . Besides, arrhythmia reduction and improved pulmonary hypertension have also been reported with CPAP . Similarly, Cloward et al. report that left ventricular hypertrophy was detected in high frequency in subjects with severe OSAS and regressed after 6 months of nasal CPAP treatment . In this study, Clowart et al. report that 92% of the 25 subjects had structural abnormalities on echocardiography, and 88% of subjects had left ventricular hypertrophy, 64% had left atrial enlargement, 48% had right atrial enlargement, and 16% had right ventricular hypertrophy. In addition, ejection fraction was within normal limits in all patients . In their study, although the primary measures of left ventricle hypertrophy obtained from echocardiograms were interventricular septal thickness at diastole and left ventricle posterior wall thickness, a regression after six months of CPAP treatment was observed. However, no significant change was found in left arterial enlargement or right arterial enlargement following 6 months of CPAP.
The association of OSAS and right heart function is incompatible. The prevalence of right ventricular hypertrophy by ECHO in sleep apnea was up to 71% . In the present study, mean ID time in Lead V1 was 76.2 ± 8.3, and significantly improvement was seen by long-term CPAP therapy (59.8 ± 7.2). P-wave discrimination was 95.2 ± 12.8, and it was also significantly improved (77.8 ± 11.7) by CPAP treatment. Likewise, our results show that, severe OSAS patients had prolonged ID time in leads V1 and V6, and so PWD, and regressed after one year of CPAP therapy.
Our study has some limitations. First, this study included only severe OSAS patients, not mild to moderate OSAS patients. Lack of evaluation of the right cardiac functions with ECHO is another limitation. Lastly, lack of data as regards to the CPAP compliance is a limitation as well.
In conclusion, long-term CPAP treatment significantly decreases ID time in lead V1 and V6 and also improves PWD in patients with severe OSAS. It may be beneficial to provide a strong protective effect on right and left cardiac functions in severe OSAS patients without any cardiac and pulmonary disease.
This research did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sectors.
Conflict of Interest
The authors have no conflicts of interest.
