Karimzadeh-Somarin Kian1* and Somarin Alireza2

1 Faculty of Science, Department of Biology, Brandon University, Brandon, MB, Canada, Email: kiansomarin14@gmail.com
2 Faculty of Science, Department of Geology, Brandon University, Brandon, MB, Canada

*Correspondence: Karimzadeh-Somarin Kian, Faculty of Science, Department of Biology, Brandon University, Brandon, MB, Canada, Tel: (204) 727-9686, Email: kiansomarin14@gmail.com

Received: 23-Nov-2017 Accepted Date: Jan 10, 2018; Published: 17-Jan-2018, DOI: 10.4172/2591-7641.1000010

Citation: Somarin KK, Somarin A. Toxic elements and heavy metals concentrations in playground of elementary schools of Brandon, Manitoba, Canada. J Environ Geol 2017;2(1): 1-10.

This open-access article is distributed under the terms of the Creative Commons Attribution Non-Commercial License (CC BY-NC) (http://creativecommons.org/licenses/by-nc/4.0/), which permits reuse, distribution and reproduction of the article, provided that the original work is properly cited and the reuse is restricted to noncommercial purposes. For commercial reuse, contact reprints@pulsus.com

Abstract

Chemical safety of school playgrounds is very important for the health and well-being of students and it is expected that level of heavy metals [including toxic elements] be below acceptable [non-toxic] levels. The risk from accidental consumption of potentially toxic elements in playground soils is of concern to children’s health. Concentration of heavy metals is a very important factor in assigning type of land use. For example, Canadian Council of Ministers of the Environment [CCME] has published soil quality guidelines to help protect environmental and human health. These guidelines identify 4 types of land use in Canada: agricultural, residential/parkland, commercial, and industrial. Different concentrations of heavy metals are suggested for each land use.

A total of 73 samples were collected from playgrounds of 16 elementary schools in Brandon, Canada and analysed for major and light elements [Fe, Ti, Ca, K, Al, P, Si, Cl, S, Mg] as well as trace and heavy metals [As, Ba, Cd, Cr, Cu, Pb, Mn, Ni, Se, U, V, Zn]. The elemental relationships in these samples show that the data sets were predominantly influenced by natural geologic element dispersion and accumulation processes. Anthropogenic sources generally enrich individual [or small number of] elements and, as a result, distributions are disturbed and skewed towards higher values in natural systems. Lower values are commonly free from anthropogenic influences. This research shows that As, Ba and Cu are the only heavy metals in playgrounds of some schools in Brandon that are higher than, or close to, the values suggested by the Canadian soil quality guidelines.

Introduction

It is expected that neighborhood and school playgrounds to be safe and clean environments for children to play in. Every day, thousands of school students play on playgrounds; they touch soil and even sometimes eat snack or food after touching soil. The question is that how safe is the soil; are there high levels of toxic elements in the soil, or concentrations of the toxic elements are below acceptable threshold?

Intentional or unintentional consumption of potentially toxic elements in playground soils can be a great risk to children’s health. This topic has been a popular research topic in communities worldwide and similar case studies have been carried out in many playgrounds. For example, toxic levels of Pb, Ni and As were detected in children’s playground in Townsville, Australia [1]. In another case study, the concentration of As and Pb in soils collected from 12 schools in NE England was compared with Soil Guideline Values from seven countries as well as reported literature concentrations for playgrounds and recreational parks. This research demonstrated that minimal risk arises from the investigated playgrounds provided that good personal hygiene is adhered [2]. Soil pollution has become an important environmental issue in China owing to rapid urbanization and industrialization, and increasing reliance on agrochemicals in the last several decades [3,4].

Manta et al. [5] reported an average of 202, 138, 63, and 0.63 ppm for Pb, Zn, Cu and Hg, respectively, in green areas and parks in the city of Palermo, Italy. Lavado et al. [6] studied As, B, Ba, Ca, Co, Cr, Cu, Pb, Mn, Hg, Mo, Ni, Ag, Se, and Zn concentrations in topsoil and soil profiles at Pampas, Argentina, and reported that all of the values were within the normal range for uncontaminated soils.

Madrid et al. [7] compared concentration of Cu, Cr, Ni, Pb, and Zn in urban parks in six European cities with a different climate and industrial history and found out that Cu, Zn, and Pb contamination tends to occur together at the same site, while the same was not true with Ni and Cr contamination. Clark et al. [8] studied backyard gardens in Roxbury and Dorchester, USA, and reported that Pb concentrations in these gardens range from 80 to 3680 ppm with the mean value of 950 ppm.

Zheng et al. [9] studied As, Cd, Cr, Cu, Ni, Pb, and Zn concentration in topsoil of Beijing, China, and found out that the center of the city has the highest concentration of these metals. They suggested that vehicle exhaust and smelters are the main anthropogenic sources of heavy metal contamination in Beijing.

Szynkowska et al. [10] studied impact of industrial activities and traffic emissions on metal [Cd, Cr, Cu, Ni, Pb, and Hg] concentrations in soil samples and the waste product phosphor-gypsum in Lódz and Gdansk, Poland, and compared the results with soil samples taken from potentially uncontaminated sites [Lagiewniki Forest, Central Poland]. They proposed that the source of contaminations is related to the anthropogenic activities as concentrations of the heavy metals increase by approaching the pollution source.

Wei et al. [11] investigated heavy metal concentrations in urban soils, urban road dusts and agricultural soils in China and found out that almost all heavy metal concentrations are higher in urban centers than in the agricultural soils. They also reported that the concentrations of heavy metals vary significantly among the cities and concluded that the contamination of Cr, Ni, Cu, Pb, Zn, and Cd is widespread in urban soils in China.

Heidary-Monfared [12] studied Pb, As, Cu, and Zn concentrations in samples from gardens in Halifax Regional Municipality, Canada, using partial digestion analytical method. Soil heavy metal concentrations were compared to the CCME soil quality guidelines for agricultural lands. It was found out that more than one third of samples had higher concentration of Pb than the CCME guideline. Arsenic contamination was widespread and half of the samples had higher As than the CCME guideline. He concluded that Pb and As contamination is related to the bed rock.

Jien et al. [13] studied soil profiles from urban parks in Taiwan in order to evaluate the contamination and sources of potentially toxic elements [Cd, Cr, Cu, Ni, Pb, Zn, As, Hg]. They reported that Pb-Zn and Ni-As are from different sources. Also they suggested that Cu [mean of 91.1 ppm] and Zn [mean of 126 ppm] in urbane surface soils of Kaohsiung city are related to industrial activity; Pb [mean of 56.8 ppm] in urbane surface soils of Taipei city is related to high traffic; Ni [mean of 12.8 ppm] and As [mean of 28.7 ppm] in urbane surface soils of Yilan city are below background levels in Taiwan and are related to the parent bedrock [slate and argillite].

Quarshie et al. [14] measured concentrations of the toxic elements As, Cd, Cr, Hg and V in soil and tailings samples from the Bibiani mining area, Ghana. The concentrations of the elements measured in the soil were in the following ranges: As 0.46-996 ppm, Cd 0.69-4.15 ppm, Hg 0.01-0.06 ppm, and V 60-204 ppm. In the tailings, the concentrations of the elements showed different ranges: As [2.70-3.50]×103 ppm, Cd 1.35-3.36 ppm, Cr 19- 87 ppm, Hg 0.01-0.02 ppm, and V 48-93 ppm. They concluded that tailings dam and mining activities might be the source of As pollution in the area. Concentration of V was high in both the soil and tailings samples however the levels of V in the soil were higher than those in the tailings. The levels of Cd and Hg in both soil and tailings samples were relatively low and, therefore, did not give any indication of contribution from mining activities.

Cai L et al. [4] studied Cu, Zn, Ni, Cr, Pb, Cd, As and Hg concentrations in agricultural soil samples collected from Huizhou, China, and found out that, compared to the soil background contents in Guangdong Province, the mean concentrations of Hg, Cd, Zn, Pb and As in soil of Huizhou are higher, especially Hg and Cd, which were 2.82 and 1.79 times the background values, respectively. They concluded that Cr, Ni, Cu, and partially Zn and Pb originated mainly from a natural source; Cd, As, and partially Zn mainly from agricultural practices; Hg, and partially Pb from industry and traffic sources.

Roca et al. [15] studied variability in the natural background levels of seven heavy metals [Cd, Cr, Cu, Mn, Ni, Pb and Zn] in soil profiles from the agricultural area of Fray Mamerto Esquiú, Argentina, and reported that Cd shows slight natural enrichment anomaly. They found out that Cu, Fe, Mn and Zn were enriched in the top horizon due to the high percentage of organic matter.

Knowing the concentrations of trace elements in soils is essential to maintaining environmental quality particularly in assigning type of land use in particular areas. Various environmental agencies, including the Canadian Council of Ministers of the Environment [CCME], have published soil quality guidelines. The Canadian soil quality guidelines identify 4 types of land use [16] (i) agricultural, (ii) residential/parkland, (iii) commercial, and (iv) industrial. Generic guidelines have been developed to protect human and key ecological receptors that have normal activities on any of these four land use categories. Sensitivity to contamination is high in agricultural and residential/parkland land uses due to ecological or human health components in these land use categories. Furthermore, urban gardening [as community or school gardens] has gained momentum in many cities in the last a few years. However, studies have shown that urban soils can have high concentration of certain trace elements [i.e., heavy metals]. These elements can enter the human body through inhalation or ingestion of dust/soil and, to a lesser extent, through the consumption of produce grown in contaminated soil (12), as plant tissues can bio accumulate some heavy metals [17].

The soil of Brandon area, Canada, is generally thought to be uncontaminated. Nevertheless, the urbanization of agricultural soils in this area could potentially distort natural metal distribution. This is a very important issue in residential and parkland soils and requires investigation of potential metal accumulation in these soils.

This study was carried out to determine composition of soil and evaluate the background level of trace elements [including heavy metals] in soils of the play structures of elementary schools in Brandon. Also the range of heavy metal concentration and distribution was investigated. The acquired information was used to assess possible soil contamination and identify source of contamination. Such evaluation is important to identify which playgrounds [if any] have contaminated soil which may need remediation.

Methodology

Brandon, the second-largest city in the province of Manitoba, Canada, is located in the southwestern corner of the province near the Assiniboine River, approximately 214 km west of the provincial capital, Winnipeg. The playgrounds in the Brandon elementary schools show low variety of geological and lithological conditions. The area investigated is characterized by prairie setting with flat morphology and uniform pedolandscape related to the parent material and to the geomorphic surfaces the soils originated from. The soil parent materials in the area investigated are mainly glacial and alluvial deposits; shale bedrock is only exposed in Souris town 47 km SW of Brandon. Farming is the main land utilization type in the area.

A total of 73 samples were collected from playgrounds [specifically soil in the play structure areas] of 16 elementary schools in Brandon (Figure 1) in sunny days of June-July 2015. The focus was on the play structure areas because most of students spend more time in these areas. The number of samples from each playground varies between 2 and 8 depending on availability of proper samples as well as size of the playgrounds. Samples were selected from surface [0–10 cm] of soil in the playgrounds. Each main soil sample [1-3 kg], consisted of 3–5 sub-samples, were randomly taken from the surroundings of each site, pooled and homogenized to form a representative sample. All samples were kept in sealed packages to avoid contamination and transported to the laboratory at Brandon University immediately. The samples were dried in room temperature to release any potential vapour and moisture. Then they were sieved and portion finer than 60 mesh in each sample [in solid form] was analysed by X-ray florescence [XRF]. The samples were analysed twice and the average values are used in this paper. In case the two assays were not similar, the third analysis was performed. The quality control was performed using eight standard samples. The concentrations and standard deviation for trace elements are shown in Table 1.

environmental-geology-elementary-schools-brandon

Figure 1: Elementary schools of Brandon, Canada

Table 1: Trace element concentration (in ppm) in soil samples of playgrounds in the elementary schools of Brandon. Major elements (in %) are also shown. Ni, Se, U, V, Cd, and Cr were below detection limit and are not shown. ND=not detected. Acceptable levels (in ppm) are from CCME [18]

    As Ba Cu Pb Mn Zn Fe % Ti % Ca % K % Al % P % Si % Cl % S % Mg %
Acceptable Level → 12 500 63 140 ? 200
Standard Deviation→ 3 34 18 4 1449 8
Sample School
JRR1 J.R. Reid 12 508 ND 16 ND 43 2.44 ND 8.58 0.94 3.64 0.05 22.78 0.04 0.13 1.69
JRR2 14 545 ND 14 ND 54 2.68 ND 7.03 1 3.95 0.05 23.84 0.04 0.13 1.22
JRR3 7 399 37 16 ND 41 4.34 0.37 8.28 0.61 3.4 0.04 22.51 0.05 0.12 1.83
JRR4 11 485 ND 15 ND 56 2.42 ND 8.46 0.98 3.76 0.04 23.02 0.04 0.13 1.54
KL1 Kirkcaldy Heights 8 463 ND 16 3301 60 2.87 ND 4.74 0.95 3.34 0.05 19.19 0.03 0.11 0.98
KL2 8 512 70 17 3105 80 2.46 ND 6.23 0.98 3.52 0.06 21.37 0.04 0.12 1.64
KL3 8 277 31 8 1267 82 2.25 ND 4.56 0.77 2.85 0.06 16.47 0.05 0.16 0.84
KL4 6 482 280 23 ND 133 2.2 ND 6.24 1.3 4.36 0.06 22.84 0.04 0.15 1.44
MED1 Meadows 6 590 ND 16 ND 45 2.21 ND 6.97 1 4.01 0.04 25.11 0.04 0.13 1.88
MED2-A 9 541 35 17 ND 48 2.4 ND 8.33 0.99 3.84 ND 22.98 0.06 0.13 2.27
MED2-B 9 564 ND 30 ND 48 2.2 ND 7.12 1.12 3.89 0.06 23.55 0.04 0.13 2.29
MED3 7 550 34 28 1479 47 2.45 ND 6.86 1.11 3.89 0.06 22.38 0.05 0.13 2.36
MED4 12 560 ND 19 1517 61 2.1 ND 8.12 1.14 3.87 0.05 21.48 0.05 0.14 2.52
MED5 11 575 ND 33 ND 61 2.22 ND 7.39 1.14 4.07 0.04 23.7 0.04 0.13 2.11
EO1 Earl Oxford ND 518 ND 15 ND 37 1.24 ND 2.86 1.2 4.18 0.06 30.15 0.02 0.11 1.02
EO2 ND 501 ND 11 ND 26 1.22 ND 3.35 0.98 3.98 0.06 27.89 0.03 0.11 1.1
EO3 ND 497 ND 11 ND 28 0.83 ND 2.77 0.97 3.79 0.06 29.89 0.03 0.11 1.18
EO4 ND 507 ND 18 ND 27 1.07 ND 3.01 1.04 3.84 0.06 29.59 0.03 0.12 1.15
EO5 ND 514 ND 16 ND ND 1.16 ND 3.5 1.07 4.03 0.05 29.32 0.03 0.12 1.45
EO6 ND 492 ND 17 ND 28 1.15 ND 3.3 1.06 3.95 0.07 29.6 0.03 0.12 0.95
VV1 Valleyview 6 488 ND 14 ND 48 2.01 ND 5.99 1.06 3.89 0.05 24.27 0.04 0.11 1.19
VV2 10 551 ND 16 ND 64 2.25 ND 6.56 1.12 4.22 0.04 24.77 0.05 0.12 1.57
VV3 8 423 ND 12 1395 55 2.34 ND 5.82 0.85 3.55 0.03 23.02 0.04 0.11 1.46
VV4 7 540 ND 12 ND 36 1.32 ND 4.44 0.99 4.04 0.07 27.79 0.03 0.11 1
VV5 ND 509 ND 14 ND 38 1.32 ND 4.26 1.06 3.98 0.06 28.25 0.03 0.11 1.27
LL1 Linden Lane ND 545 ND 25 ND 44 1.93 ND 5.85 1.04 3.69 0.03 25.17 0.05 0.14 1.64
LL2 10 528 ND 12 ND 37 1.96 ND 7.9 1.02 3.69 0.03 23.22 0.11 0.12 2.27
LL3 7 541 ND 14 ND 46 2.24 ND 7.23 1.15 3.89 ND 23.85 0.03 0.12 1.77
LL4 ND 520 ND 17 ND 45 2.34 ND 6.87 1.09 3.99 0.04 23.63 0.04 0.11 1.77
LL5 ND 512 ND 16 ND 44 1.83 ND 5.51 1.09 3.81 0.05 24.69 0.04 0.13 1.62
LL6 10 512 ND 12 ND 50 1.9 ND 5.68 1.06 3.82 0.06 25.2 0.04 0.12 1.37
BG1 Betty Gibson 16 516 ND 30 ND 60 2.04 ND 6.13 1.09 3.97 0.05 22.88 0.04 0.15 1.95
BG2 27 530 48 17 ND 63 1.92 ND 5.46 1.2 4.05 0.06 23.79 0.05 0.15 1.63
BG3 13 519 46 21 ND 67 2.63 ND 7.79 1.09 3.96 0.05 21.26 0.09 0.15 2.35
BG4 12 494 ND 17 ND 43 1.78 ND 6.04 1.09 3.82 0.06 23.41 0.11 0.15 1.45
BG5 35 493 86 15 ND 79 1.93 ND 5.13 1.14 3.52 0.09 19.98 0.08 0.2 1.34
Riv1 Riverheights 12 561 ND 17 ND 68 2.69 ND 7.24 1.17 4.31 ND 22.41 0.05 0.13 1.8
Riv2 13 503 61 12 ND 63 2.51 ND 6.23 1.32 3.84 0.11 19.98 0.05 0.17 1.54
Riv3 8 551 ND 16 ND 66 2.13 0.34 4.73 1.24 4.52 0.05 25.78 0.03 0.13 2.27
Riv4 10 527 ND 15 ND 49 1.7 ND 4.58 1.13 4.18 0.04 26.24 0.03 0.12 1.4
Riv5 10 545 ND 18 ND 65 2.74 ND 5.35 1.2 4.47 0.06 24.82 0.04 0.13 1.79
Riv6 7 558 ND 14 ND 55 2.16 ND 5.79 1.33 4.32 0.05 23.91 0.04 0.12 1.99
Riv7 8 500 ND 14 ND 66 1.99 0.34 5.13 1.23 4.49 0.04 25.48 0.03 0.12 1.6
W1 Waverly Park ND 509 ND 12 ND ND 1.19 ND 2.23 1.19 4.08 0.06 31.5 0.02 0.11 0.72
W2 ND 515 ND 12 ND ND 1.14 ND 3.2 1 3.89 0.06 29.4 0.03 0.12 0.92
W3 ND 519 ND 14 ND 27 1.36 0.32 3.03 1.07 4.01 0.1 29.3 0.03 0.11 1.55
W4 ND 488 ND 13 ND ND 1.67 ND 3.56 0.98 3.58 0.05 26.16 0.05 0.1 1.08
W5 9 636 51 10 7955 58 5.76 ND 12.87 0.89 3.65 0.08 14.89 0.07 0.12 4.85
W6 10 603 70 14 7212 58 5.65 ND 13.91 0.91 3.65 0.05 14.26 0.07 0.13 4.48
W7 9 560 55 12 4308 46 3.91 ND 9.37 0.95 3.71 0.07 19.2 0.05 0.13 3.02
GA1 Green Acres ND 525 ND 16 ND 41 1.71 ND 6.02 1.24 3.87 0.03 23.5 0.05 0.11 1.92
GA2 ND 501 ND 13 ND 34 1.14 ND 3.16 1.04 3.71 0.08 28.31 0.04 0.11 1.44
GA3 12 575 ND 38 ND 79 2.41 ND 7.06 1.28 4.04 0.06 22.29 0.05 0.13 1.72
SA1 St Augustine 8 477 ND 22 ND 59 1.84 ND 5.56 0.85 3.56 0.07 25.45 0.04 0.13 0.98
SA2 6 497 ND 19 ND 47 1.61 ND 6.04 0.98 3.64 0.06 24.31 0.04 0.14 1.6
SA3 ND 489 37 21 ND 50 1.65 ND 6.5 0.94 3.62 0.06 23.78 0.05 0.14 1.45
SA4 ND 497 ND 18 ND 52 1.68 ND 6.33 1.01 3.5 0.05 23.57 0.06 0.15 1.35
GF1 George Fitton 6 516 ND 17 ND 72 1.77 ND 4.39 1.07 3.86 0.09 25.96 0.07 0.15 1.23
GF2 7 489 ND 12 ND 59 1.83 ND 5.28 1.06 3.82 0.09 25.13 0.07 0.14 1.63
GF3 8 497 51 17 ND 153 2.41 0.38 5.16 1.18 4.25 0.08 23.34 0.05 0.16 1.49
EH1 Ecol Harrison 8 517 ND 12 ND 42 1.98 ND 6.59 0.94 4.06 ND 23.65 0.05 0.13 1.66
EH2 10 528 ND 11 ND 34 2.1 ND 5.92 0.94 4.18 0.04 25.41 0.04 0.14 1.7
Re1 Riverview 11 481 ND 12 ND 42 1.74 ND 5.15 1.13 3.71 0.03 24.81 0.04 0.11 0.68
Re2 6 490 ND 11 ND 45 1.34 ND 4.62 0.98 3.71 0.04 25.94 0.03 0.11 1.3
Re3 7 511 ND 14 ND 45 1.98 ND 5.01 1 3.98 0.04 26.59 0.03 0.11 1.8
Re4 7 481 ND 9 ND 41 2.32 ND 6.37 0.86 3.62 0.05 25.91 0.04 0.11 1.17
NE1 New Era 12 466 30 25 1574 93 2.63 ND 7.32 0.87 3.55 ND 23.45 0.05 0.17 1.34
NE2 12 456 30 12 2116 83 2.7 ND 7.78 0.83 3.69 ND 25.27 0.06 0.12 1.62
NE2 ND 335 42 15 2015 78 2.49 ND 6.47 0.78 3.19 ND 21.09 0.04 0.11 1.49
NE4 13 465 33 15 5146 75 2.8 ND 10.2 0.8 3.39 ND 18.75 0.06 0.12 2.45
NE5 18 459 45 14 3915 68 2.74 ND 9.25 0.76 3.25 ND 21 0.06 0.12 2.31
KG1 King George 12 541 77 22 3572 81 3.79 ND 7.17 1.17 4.41 0.05 22.55 0.04 0.13 2.18
KG2 7 474 111 31 3877 193 3.65 ND 6.6 1.01 4.01 0.08 21.96 0.05 0.18 2.17
KG3 12 510 43 12 3894 69 3.68 ND 7.26 1.02 3.93 0.04 20.61 0.04 0.11 1.1
KG4 8 525 52 16 4351 85 3.9 ND 8.7 0.99 4.07 0.06 21.72 0.05 0.13 2.09

Results

All studied samples mainly have high silica content reflecting their quartzrich sandy characteristic. Some carbonate accompanies sand in some school soil. This is reflected in the chemistry of those samples as high Ca and Mg [e.g. Waverly Park school]. Potassium, Ca, and Al are mainly within feldspars and/or clay in the samples. Titanium is detected in some school soil; it mainly occurs as TiO2 in sands. Minor amount of phosphor reflects transported apatite [Ca5(PO4)3] grains in sand.

As trace and heavy metals can be toxic, their concentrations for each school (Table 1) are discussed in details below. Barium is a heavy trace metal that was detected in all studied samples and is discussed as well.

J.R. Reid school

4 samples from the volleyball field of this school show the following.

•7-14 ppm As: The Canadian soil quality guidelines suggest 12 ppm as acceptable As level in parkland and residential fields [18]. It appears that only one sample from this school has higher arsenic [14 ppm] however considering standard deviation [STD] of the used analytical method (3 ppm, Table 1), it appears that As in this sample is close to the guideline level.

•399-545 ppm Ba: Two samples have higher Ba [508 and 545 ppm] than the guideline suggestion [500 ppm]. Considering high STD [34 ppm], it seems that Ba in these 2 samples is close to the guideline level.

•Only one sample showed 37 ppm Cu which is below the guideline level [63 ppm]. In the rest of samples, Cu was below detection limit.

•14-16 ppm Pb: All samples have less Pb than the Canadian soil quality guideline [140 ppm].

•Mn was not detected.

•41-56 ppm Zn: Similar to Pb, all analysed samples have less zinc than the Canadian soil quality guideline [200 ppm].

Kirkcaldy Heights school

2 samples from the small playground and 2 samples from the larger playground of this school show the following.

•6-8 ppm As: All samples have less arsenic than the Canadian soil quality guideline [12 ppm].

•277-512 ppm Ba: Only one sample has higher Ba [512 ppm] than the guideline level [500 ppm]. High STD [34 ppm] suggests that Ba in this sample is very close to the guideline level.

•31-280 ppm Cu: Copper was not detected in one sample. Two samples contain 70 and 280 ppm Cu which are above acceptable level [63 ppm]. The sample with 70 ppm Cu probably has about the guideline level [considering Cu STD of 18 ppm] (Table 1). However, sample with 280 ppm Cu has much more Cu than the acceptable level. This sample is from the large playground.

•8-23 ppm Pb: All samples have less arsenic than the Canadian soil quality guideline [140 ppm].

•1267-3301 ppm Mn: Manganese was not detected in one sample. Acceptable level of Mn in residential and parklands of Canada is not known.

•60-133 ppm Zn: Similar to Pb, all analysed samples have less zinc than the Canadian soil quality guideline [200 ppm].

Meadows school

Five samples from sandbox and small playground of this school show the following results.

•6-12 ppm As: All samples have less arsenic than, or close to, the Canadian soil quality guideline [12 ppm].

•541-590 ppm Ba: All analysed samples contain higher Ba than the guideline suggestion [500 ppm]. However high STD [34 ppm] suggests that Ba in these samples is close or higher than the guideline level.

•34-35 ppm Cu: Copper was detected in two samples. Both samples contain less Cu than the guideline level [63 ppm].

•16-33 ppm Pb: All samples have less Pb than the Canadian soil quality guideline [140 ppm].

•1479-1517 ppm Mn: It was detected in two samples.

•45-61 ppm Zn: All analysed samples have less Zn than the Canadian soil quality guideline [200 ppm].

Earl Oxford school

Six samples from the sandy playground of this school show the following results.

•Arsenic was not detected.

•492-518 ppm Ba: Considering Ba STD [34 ppm], all these samples have close to the Canadian soil quality guideline [500 ppm].

•Cu was not detected.

•11-18 ppm Pb: All samples have less Pb than the Canadian soil quality guideline [140 ppm].

•Mn was not detected.

•26-37 ppm Zn: All analysed samples have less Zn than the Canadian soil quality guideline [200 ppm]. Zn was not detected in one sample.

Valley-View school

Five samples from the gravel±sand playground of this school show the following results.

•6-10 ppm As: All samples have less arsenic than the Canadian soil quality guideline [12 ppm]. Arsenic was less than detection limit in one sample.

•423-551 ppm Ba: Considering Ba STD [34 ppm], some of these samples have close to the Canadian soil quality guideline [500 ppm].

•Cu was not detected.

•12-16 ppm Pb: All samples have less Pb than the Canadian soil quality guideline [140 ppm].

•Mn was detected only in one sample [1395 ppm].

•36-64 ppm Zn: All analysed samples have less Zn than the Canadian soil quality guidelines [200 ppm].

Linden Lane school

Six samples from the sand±gravel playground of this school show the following results.

•7-10 ppm As: Arsenic was detected only in 3 samples which have less As than the Canadian soil quality guideline [12 ppm].

•512-545 ppm Ba: Considering Ba STD [34 ppm], all of these samples have Ba probably close to the Canadian soil quality guideline [500 ppm].

•Cu was not detected.

•12-25 ppm Pb: All samples have less Pb than the Canadian soil quality guideline [140 ppm].

•Mn was not detected.

•37-50 ppm Zn: All analysed samples have less Zn than the Canadian soil quality guidelines [200 ppm].

Betty Gibson school

Five samples were collected from the sand ± gravel playground.

•12-35 ppm As: All analysed samples have arsenic close to, or higher than, the Canadian soil quality guideline [12 ppm].

•493-530 ppm Ba: Considering Ba STD [34 ppm], all of the analyzd samples have Ba close to the Canadian soil quality guideline [500 ppm].

•46-86 ppm Cu: Copper was detected in 3 samples. One sample contains 86 ppm Cu which could be close to the Canadian soil quality guidelines [63 ppm] considering Cu STD [18 ppm].

•15-30 ppm Pb: All samples have less Pb than the Canadian soil quality guideline [140 ppm].

•Mn was not detected.

•43-79 ppm Zn: All analysed samples have less Zn than the Canadian soil quality guideline [200 ppm].

Riverheights school

Seven samples were collected from the sandy parts of the main play structure, volleyball field and swinging area.

•7-13 ppm As: Considering As STD [3 ppm], all analysed samples have arsenic close to, or lower than, the Canadian soil quality guideline [12 ppm].

•500-561 ppm Ba: Considering Ba STD [34 ppm], all samples have Ba probably close to, or slightly higher than, the Canadian soil quality guideline [500 ppm].

•Cu was detected only in one sample. This sample has lower Cu [61 ppm] than the Canadian soil quality guideline [63 ppm].

•12-18 ppm Pb: All samples have less Pb than the Canadian soil quality guideline [140 ppm].

•Mn was not detected.

•26-37 ppm Zn: All analysed samples have less Zn than the Canadian soil quality guideline [200 ppm]. Zn was not detected in one sample.

Valley-View school

Five samples from the gravel±sand playground of this school show the following results.

•6-10 ppm As: All samples have less arsenic than the Canadian soil quality guideline [12 ppm]. Arsenic was less than detection limit in one sample.

•423-551 ppm Ba: Considering Ba STD [34 ppm], some of these samples have close to the Canadian soil quality guideline [500 ppm].

•Cu was not detected.

•12-16 ppm Pb: All samples have less Pb than the Canadian soil quality guideline [140 ppm].

•Mn was detected only in one sample [1395 ppm].

•36-64 ppm Zn: All analysed samples have less Zn than the Canadian soil quality guidelines [200 ppm].

Linden Lane school

Six samples from the sand±gravel playground of this school show the following results.

•7-10 ppm As: Arsenic was detected only in 3 samples which have less As than the Canadian soil quality guideline [12 ppm].

•512-545 ppm Ba: Considering Ba STD [34 ppm], all of these samples have Ba probably close to the Canadian soil quality guideline [500 ppm].

•Cu was not detected.

•12-25 ppm Pb: All samples have less Pb than the Canadian soil quality guideline [140 ppm].

•Mn was not detected.

•37-50 ppm Zn: All analysed samples have less Zn than the Canadian soil quality guidelines [200 ppm].

Betty Gibson school

Five samples were collected from the sand ± gravel playground.

•12-35 ppm As: All analysed samples have arsenic close to, or higher than, the Canadian soil quality guideline [12 ppm].

•493-530 ppm Ba: Considering Ba STD [34 ppm], all of the analyzd samples have Ba close to the Canadian soil quality guideline [500 ppm].

•46-86 ppm Cu: Copper was detected in 3 samples. One sample contains 86 ppm Cu which could be close to the Canadian soil quality guidelines [63 ppm] considering Cu STD [18 ppm].

•15-30 ppm Pb: All samples have less Pb than the Canadian soil quality guideline [140 ppm].

•Mn was not detected.

•43-79 ppm Zn: All analysed samples have less Zn than the Canadian soil quality guideline [200 ppm].

Riverheights school

Seven samples were collected from the sandy parts of the main play structure, volleyball field and swinging area.

•7-13 ppm As: Considering As STD [3 ppm], all analysed samples have arsenic close to, or lower than, the Canadian soil quality guideline [12 ppm].

•500-561 ppm Ba: Considering Ba STD [34 ppm], all samples have Ba probably close to, or slightly higher than, the Canadian soil quality guideline [500 ppm].

•Cu was detected only in one sample. This sample has lower Cu [61 ppm] than the Canadian soil quality guideline [63 ppm].

•12-18 ppm Pb: All samples have less Pb than the Canadian soil quality guideline [140 ppm].

•Mn was not detected.

•49-68 ppm Zn: All analysed samples have less Zn than the Canadian soil quality guideline [200 ppm].

Waverly Park school

Seven samples were collected from the large gravel ± sand play structure.

•9-10 ppm As: Arsenic was detected only in 3 samples which contain As less than the Canadian soil quality guideline [12 ppm].

•488-636 ppm Ba: Considering Ba STD [34 ppm], these samples have Ba probably close to, or higher than, the Canadian soil quality guidelines [500 ppm].

•51-70 ppm Cu: It was detected in 3 samples which contain less than, or close to, the Canadian soil quality guideline [63 ppm] considering CU STD [18 ppm].

•10-14 ppm Pb: All samples have less Pb than the Canadian soil quality guideline [140 ppm].

•4308-7955 ppm Mn was detected in 3 samples.

•27-58 ppm Zn: Zinc was detected in 4 samples which contain Zn less than the Canadian soil quality guideline [200 ppm].

Green Acres school

The main play structure had only gravel and was not sampled. Three samples were collected from gravel ± sand ground in the swinging area.

•Arsenic was detected only in one sample [12 ppm] which contains As close to the Canadian soil quality guideline [12 ppm].

•501-575 ppm Ba: Considering Ba STD [34 ppm], all samples have Ba probably close to, or slightly higher than, the Canadian soil quality guideline [500 ppm].

•Cu was not detected.

•13-38 ppm Pb: All samples have less Pb than the Canadian soil quality guideline [140 ppm].

•Mn was not detected.

•34-79 ppm Zn: Zinc was detected in all 3 samples which contain Zn less than the Canadian soil quality guideline [200 ppm].

St Augustine school

Four samples were collected from the sand ± gravel playground.

•6-8 ppm As: Arsenic was detected only in 2 samples which contain As less than the Canadian soil quality guideline [12 ppm].

•477-497 ppm Ba: All 4 samples contain Ba less than the Canadian soil quality guideline [500 ppm].

•Cu [37 ppm] was detected in one sample which is less than the Canadian soil quality guideline [63 ppm].

•18-22 ppm Pb: All samples have less Pb than the Canadian soil quality guideline [140 ppm].

•Mn was not detected.

•47-59 ppm Zn: It was detected in all 4 samples which contain Zn less than the Canadian soil quality guideline [200 ppm].

George Fitton school

The main play structure area had gravel and was not sampled. Three samples were collected from the sandy swinging area.

•6-8 ppm As: All samples contain arsenic less than the Canadian soil quality guideline [12 ppm].

•489-516 ppm Ba: All samples contain Ba less than, or close to, the Canadian soil quality guideline [500 ppm].

•Cu [51 ppm] was detected in one sample which contains less Cu than the Canadian soil quality guideline [63 ppm].

•12-17 ppm Pb: All samples have less Pb than the Canadian soil quality guideline [140 ppm].

•Mn was not detected.

•59-153 ppm Zn: It was detected in all 4 samples which contain Zn less than the Canadian soil quality guideline [200 ppm].

Ecol Harrison school

Two samples were collected from the sandy volleyball field.

•8-10 ppm As: Both samples contain arsenic less than the Canadian soil quality guideline [12 ppm].

•517-528 ppm Ba: Both samples contain Ba close to the Canadian soil quality guidelines [500 ppm], considering Ba STD [34 ppm].

•Cu was not detected.

•11-12 ppm Pb: Both samples have less Pb than the Canadian soil quality guideline [140 ppm].

•Mn was not detected.

•34-42 ppm Zn: Both samples contain Zn less than the Canadian soil quality guidelines [200 ppm].

Riverview school

The main play structure area had gravel and was not sampled. Four samples were collected from the sandy swinging area.

•6-11 ppm As: All samples contain arsenic less than the Canadian soil quality guideline [12 ppm].

•481-511 ppm Ba: All samples contain Ba less than, or close to, the Canadian soil quality guideline [500 ppm].

•Cu was not detected.

•9-14 ppm Pb: All samples have less Pb than the Canadian soil quality guideline [140 ppm].

•Mn was not detected.

•41-45 ppm Zn: It was detected in all 4 samples which contain Zn less than the Canadian soil quality guideline [200 ppm].

New Era school

Five samples were collected from the main gravel ± sand playground.

•12-18 ppm As: Four samples contain arsenic close to, or slightly higher than, the Canadian soil quality guideline [12 ppm] considering As STD [3 ppm]. Arsenic was not detected in one sample.

•335-466 ppm Ba: All samples contain Ba less than the Canadian soil quality guideline [500 ppm].

•30-45 ppm Cu: Copper was detected in all 5 samples which contain less Cu than the Canadian soil quality guideline [63 ppm].

•12-25 ppm Pb: All samples have less Pb than the Canadian soil quality guideline [140 ppm].

•1574-5146 ppm Mn was detected in all samples.

•68-93 ppm Zn: Zinc was detected in all 4 samples which contain Zn less than the Canadian soil quality guideline [200 ppm].

King George school

Four samples were collected from below the main gravel playground.

•7-12 ppm As: All 4 samples contain arsenic close to, or lower than, the Canadian soil quality guideline [12 ppm].

•474-541 ppm Ba: All samples contain Ba close to the Canadian soil quality guideline [500 ppm], considering Ba STD [34 ppm].

•43-111 ppm Cu: It was detected in all 4 samples. Only one sample [with 111 ppm Cu] has higher Cu than the Canadian soil quality guideline [63 ppm].

•12-31 ppm Pb: All samples have less Pb than the Canadian soil quality guideline [140 ppm].

•3572-4351 ppm Mn was detected in all samples.

•69-193 ppm Zn: It was detected in all 4 samples which contain Zn less than the Canadian soil quality guideline [200 ppm].

Discussion

Heavy metal contamination in various types of soil usages have been studied worldwide [4,5,13,15,17]. Various countries have developed guidelines on the acceptable concentration of some elements in soil in order to protect the ecological receptors in the environment and / or human health for various land applications. The maximum acceptable level is defined as the highest concentration at which diverse health effects are not seen in the exposed receptor. Level of heavy metals and other elements in any receptor depends on type of land use and method of exposure including inhalation, ingestion, dermal contact, or transfer via the placenta. For example, direct soil contact is the primary exposure pathway for residential / parkland, commercial, and industrial land uses; soil and food ingestion are the major exposure pathway in agricultural land use. The health effects of higher than maximum acceptable levels of these elements range from minor allergies to death. For example, an overt sign of lead intoxication is its effect on central nervous system [19].

Weathering of rocks [geogenic] and anthropogenic sources are the two main pathways of metal input to soils. Anthropogenic sources of metal contamination include metalliferous mining and smelting, industry, atmospheric deposition, agriculture, and waste disposal. Some heavy metals [e.g., Cr, Ni, Cu, and partially Zn and Pb] may originate from a natural source [i.e., geologic source such as the parent rock]. In agricultural ecosystems, with intense animal farming and other agricultural practices, heavy metal contamination [e.g., As, Cd, and Zn] can occur due to the application of commercial fertilizers, sewage sludge and pesticides which usually contain a wide variety of heavy metals as impurities [20]. Other causes of pollution are atmospheric deposition due to proximity to industrial plants [21,22], combustion of fossil fuels [23,24] industry and traffic sources [e.g., Hg and Pb], and other human activities [25]. In addition, lead concentration of soil can contribute to indoor dust lead contamination [26].

The occasional or continuous addition of sediments to soil profiles, as well as organic matter accumulation and humification, make up the soil-forming processes of the greatest importance to the distribution of pseudo-total heavy metals. The background levels of elements in a particular soil depends strongly on the mineralogical composition of the parent material in the soil and the weathering processes that led to the formation of the soil [15,27]. The grain size [28], clay and organic matter content [29,30] are also important. Heavy metals are mobilized in the biosphere due to human activity and this has significantly increased the circulation of toxic metals throughout the environment. As a result, from functional point of view, each site with soil component should have specific chemical composition to be used as agricultural and residential/parkland sites. Sensitivity to contamination in such sites is high due to ecological and human health issues.

Amongst the studied heavy metals, only As, Ba and Cu in some schools show higher than or close to the values suggested by the Canadian soil quality guidelines. Overall, samples from the Betty Gibson school have higher As than those from other schools. One sample from this school has the highest amount of As [35 ppm] amongst the studied samples. This sample also has the highest S concentration suggesting presence of arsenic as a natural sulfarsenide. This is supported by weak positive correlation between As and S when all samples are used in the diagram (Figure 2) which suggests that arsenic occurs mainly as sulfarsenide such as arsenopyrite [FeAsS] in soil of playgrounds in the elementary schools of Brandon. However, Fe-S diagram (Figure 3) shows that two samples with the highest As concentrations [27 and 35 ppm] from the Betty Gibson school do not plot on the arsenopyrite [FeAsS] trend. This may indicate that As occurs as different type of sulfarsenide in these two samples.

environmental-geology-weak-positive-correlation

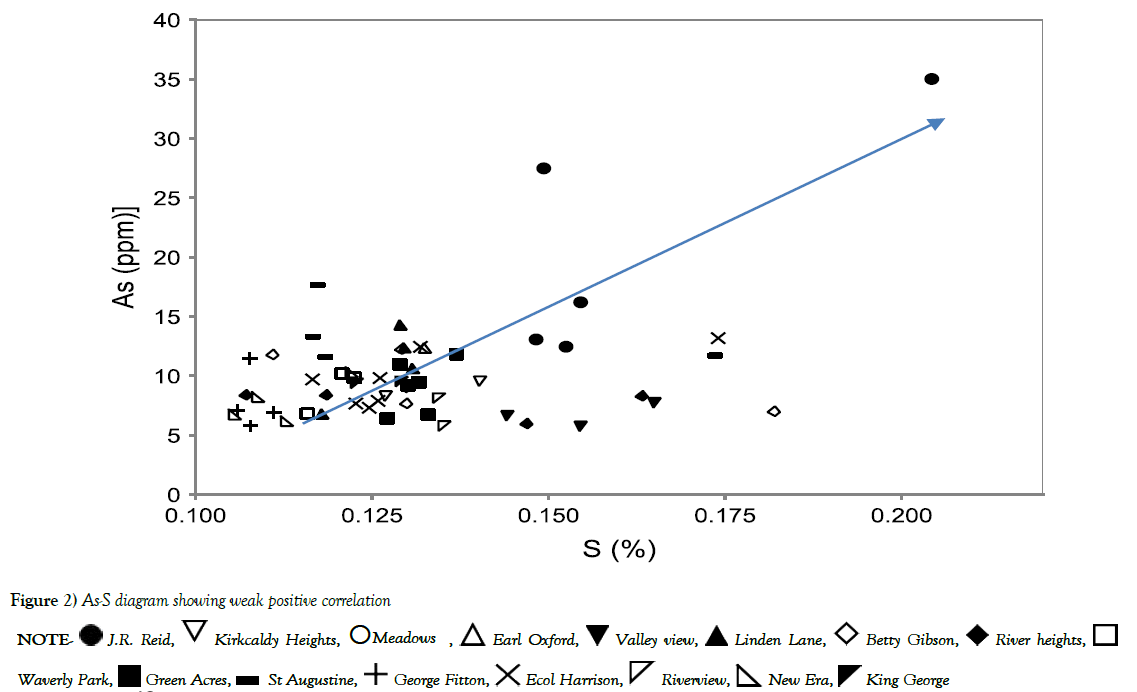

Figure 2: As-S diagram showing weak positive correlation

environmental-geology-arsenopyrite-trend

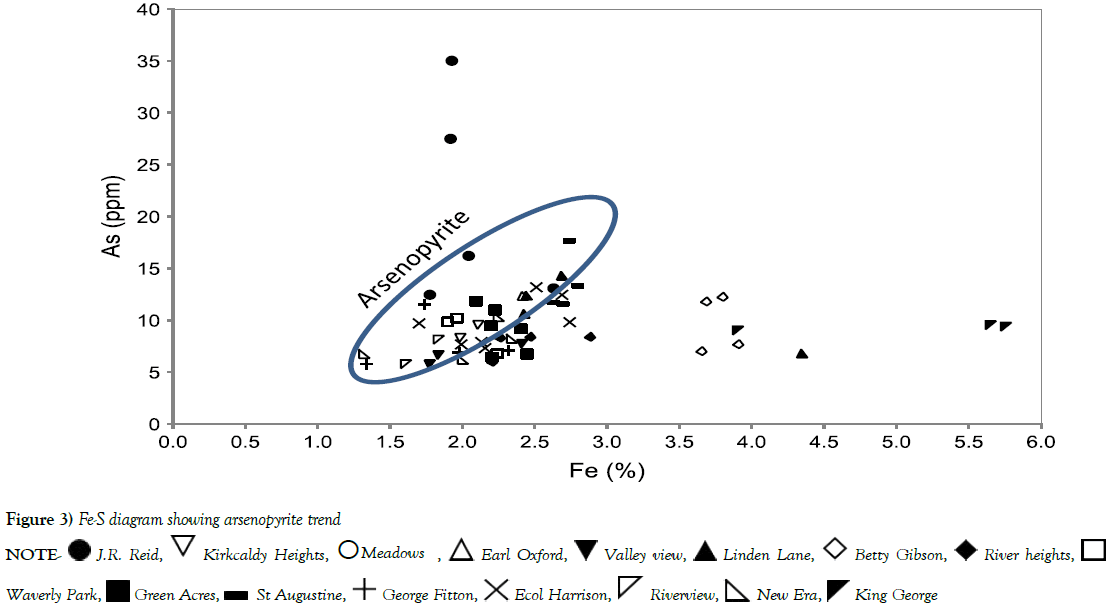

Figure 3: Fe-S diagram showing arsenopyrite trend

There is a wide range of acceptable As guidelines worldwide. For instance, the As guideline varies widely in the United States from 0.04 ppm to 40 ppm depending on the naturally occurring background levels of As. The international guidelines have diverse foundations with widely varying As concentrations which are consistently higher than the US numbers. For example, the As guidelines for UK, Netherlands, Australia and Japan are respectively 32, 76, 100, and 150 ppm [31]. The 12 ppm Canadian guideline for As is very conservative.

Although arsenic is a toxic element, its toxicity from a sulfarsenide source such as arsenopyrite depends on its solubility which is controlled by pH, Fe, and dissolved oxygen content of water [32]. In groundwater, arsenic can be present as arsenide under reducing conditions and as arsenate under oxidizing conditions. Ferric hydroxide Fe3+ [OH] bonds strongly with the soluble arsenate under oxidizing condition and removes As from the solution.

Barium concentrations are lower than the Canadian soil quality guideline in samples from most schools. It is higher or close to the guideline only in some samples of Meadows and Waverly Park schools. Barium occurs mainly as barite [BaSO4] and witherite [BaCO3] in natural samples [33,34]. If barite is the main Ba mineral, a positive correlation is expected between Ba and S. In the studied samples, such positive correlation is observed in samples with low S content (Figure 4), however the correlation of Ba with S is obscured in samples with high S content possibly due to the presence of S in other Bafree S-bearing minerals such as Cu and Zn sulfides. As a result, samples with high S do not show positive correlation with Ba. Although barium is a heavy metal, its health effects strongly depend on the solubility of its compounds. Water-soluble compounds of Ba are often highly toxic whereas barium sulfate has low solubility and is readily removed from the body [35]; that is why it is frequently utilized as a benign, radiopaque aid to X-ray diagnosis. This indicates that barite [BaSO4] is an insoluble compound which is generally nontoxic to humans [36].

environmental-geology-barite-sulfides-samples

Figure 4: Ba-S diagram showing presence of barite and sulfides in the studied samples

Copper concentrations are lower than the guideline in the playgrounds of most schools and only 4 samples from 3 schools contain higher or close to the Canadian soil quality guideline: Kirkcaldy [one sample], Betty Gibson [possibly one sample] and King George [possibly 2 samples] schools. Sulfur shows positive correlation with Cu and Zn (Figure 5) suggesting that Cu and Zn occur as their predominate sulfide phases; Cu as chalcopyrite [CuFeS2], bornite [Cu5FeS4], covellite [CuS], or chalcocite [Cu2S], and Zn as sphalerite [ZnS]. The highest Cu [280 ppm from Kirkcaldy School] does not correspond with the highest S concentration which possibly suggests that Cu in this sample is present in non-sulfide form as well.

environmental-geology-heavy-metals

Figure 5: Zn-S and Cu-S diagrams showing positive correlation between heavy metals and S

Lead is lower than the Canadian soil quality guideline in all samples from the studied schools. The positive correlation of Pb with S is obscured (Figure 6) likely due to presence of S in other S-bearing minerals such as Cu and Zn sulfides.

environmental-geology-unclear-correlation

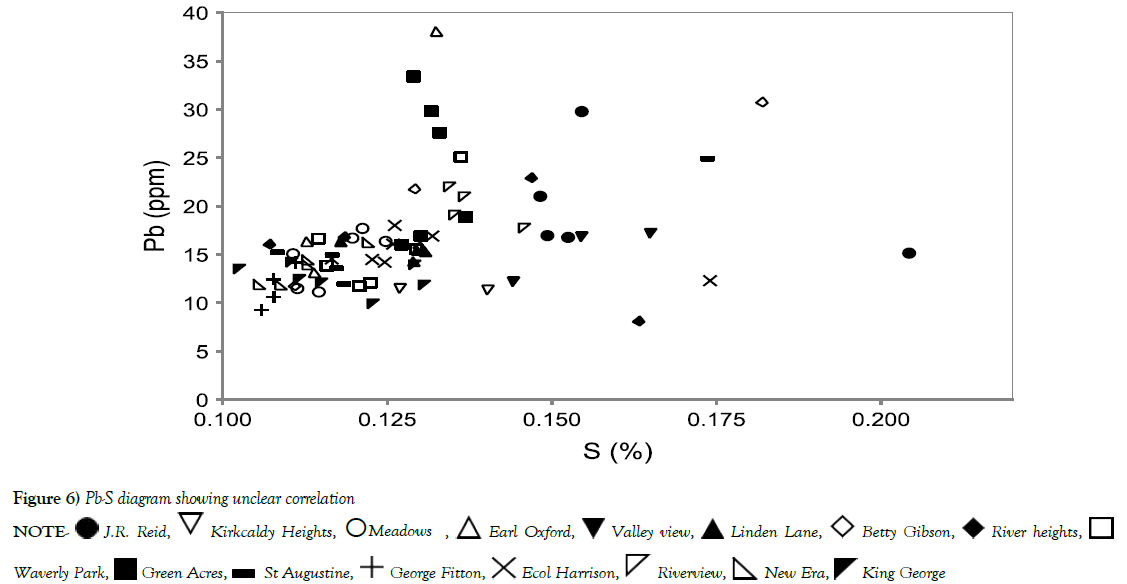

Figure 6: Pb-S diagram showing unclear correlation

Conclusion

22 elements including 6 common heavy trace elements were studied in soil samples from the play structure areas of the elementary schools of Brandon. Only As, Ba, and Cu concentrations in some samples from a few schools are close to, or higher than, the Canadian soil quality guideline. Barium occurs as insoluble barium sulfate [barite] in the studied samples. This mineral is generally considered nontoxic to humans. As and Cu distribution is mainly geogenic and they occur mostly as their natural minerals such as sulfides and sulfarsenides. The elemental relationships in the studied samples show that the data sets were predominantly influenced by natural geologic element dispersion and accumulation processes. Anthropogenic sources generally enrich individual [or small number of] elements and, as a result, distributions are disturbed and skewed towards higher values in natural systems. Lower values are commonly free from anthropogenic influences.

Acknowledgement

The funding for this project was provided by the BUREC grant from Brandon University and contribution from the Brandon School Division. Dr. Michaels from Brandon School Division and BUREC committee members are thanked for their support. The manuscript benefited from comments by anonymous referees.

REFERENCES

Keywords

Toxic elements, Heavy metals, School playgrounds, Environmental safety, Soil geochemistry

Google Scholar citation report
Citations : 103

Journal of Environmental Geology received 103 citations as per Google Scholar report

pulsus-health-tech
Top
